Direct Air
Heat Recovery Ventilator
Direct Air HRVs bring fresh air into your home and improve your air quality any time of the year.
Whether you live in a house or an apartment, Direct Air has the perfect HRV to meet your needs.
Direct Air HRVs bring fresh air indoors and pushes polluted air outdoors.
To avoid releasing heat and humidity outside during cold seasons, Direct Air’s recovery cores are designed to capture up to 81% of this heat and up to 45% of the humidity, and redistribute them throughout the home.*
(*depending on model, fan speed, outdoor/indoor temperature and outdoor/indoor humidity)
HE SERIES
Heat Recovery Ventilator with Recirculation
PHRVR 120HE
463900
PHRVR 150HE
463901
PHRVR 200HE
463902
The PHRVR120-HE is ideal for high-rise apartment applications,
condominiums, single and multi family homes. With a completely new design the PHRVR120-HE features a Counterflow core, round metal collars and a high efficiency rating!
The PHRVR150-HE is ideal for high-rise apartment applications,
condominiums, single and multi family homes. With a completely new design the PHRVR150-HE features a Counterflow core, round metal collars and a high efficiency rating!
The PHRVR200-HE is ideal for high-rise apartment applications, condominiums, single and multi family homes. With a completely new design the PHRVR200-HE features a Counterflow core, round metal collars and a high efficiency rating!

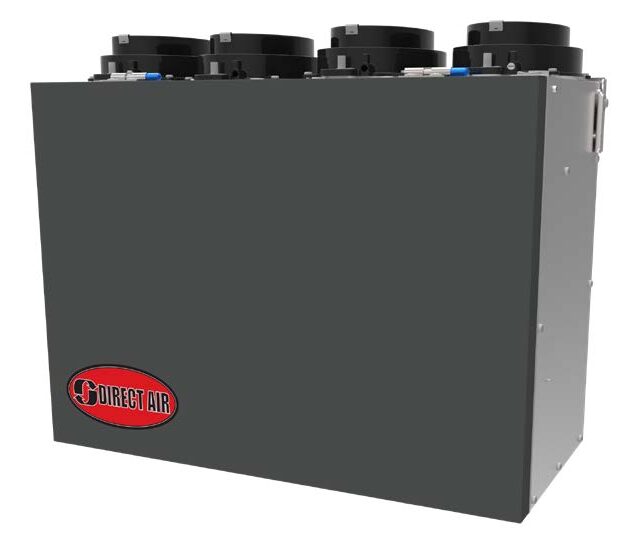

PHRVR70 ES
463317
Heat Recovery Ventilator with Recirculation
PHRVR70 ES is a compact HRV specially designed for small residential and multi-residential applications such as condominiums and apartment buildings that require up to 70 CFM continuous principal ventilation. With its flexible and compact top port design incorporating the 5″ oval collars with integrated airflow measurement and wall bracket, it can be installed in small spaces such as 24″ closets or above the hot water heater.
Features
• 5″ (125mm) oval duct connections with integrated airflow measurement
• Removable screw terminal for easy connection
• 32 lbs (14.5 kg)
• Super compact size
• Top port design fits in tight spaces
• Includes wall bracket
• Aluminum heat recovery core
• Multiple speed operation
• Internal recirculation defrost

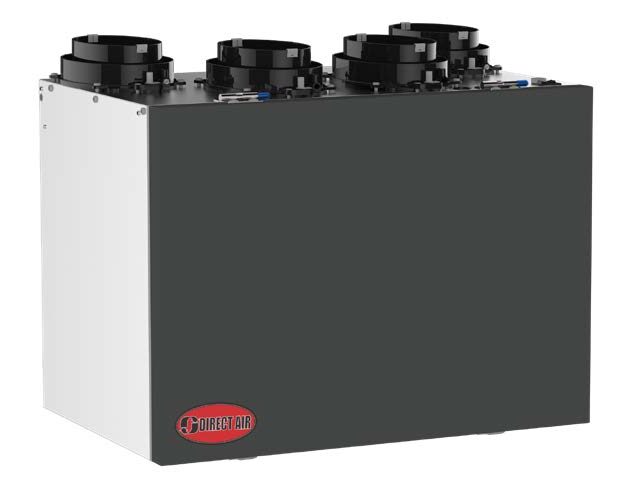

PHRVR 104
463319
Heat Recovery Ventilator with Recirculation
PHRVR104 is a compact HRV specially designed for small
residential and multi-residential applications such as condominiums and apartment buildings that require up to 100 CFM of continuous principal ventilation. With its flexible and compact top port design incorporating the 5″ oval collars with integrated airflow measurement and wall bracket, it can be installed in small spaces such as 24″ closets or above the hot water heater.
The PHRVR104 is also equipped with the Manually activated extra high speed function to temporarily increase its exhaust capacity when needed; for example, when bathrooms or kitchens are exhausted with the use of an HRV instead of conventional methods.
Features
• Manually activated extra high speed function boosts exhaust capacity
• 5″ (125mm) oval duct connections with integrated airflow measurement
• Removable screw terminal for easy connection
• Lightweight: only 43 lbs (19.45 kg) including core
• Super compact size
• Top port design fits in tight spaces
• Includes wall bracket
• Aluminum heat recovery core
• Multiple speed operation
• Internal recirculation defrost
PHRV 96
463318
Heat Recovery Ventilator without Recirculation
Compact top port design HRV with easy-mount wall bracket.
Brings a continuous supply of fresh air into a home while
exhausting an equal amount of contaminated air. HRVs use
what is called a “sensible” heat recovery core. This special core transfers heat from the exhaust air stream to the incoming air stream. Fresh incoming air is tempered by the heat that is transferred from the outgoing air to save on energy costs. The PHRV96 is equipped with automatic defrost mechanisms so even if you live in the coldest climates you can use your HRV all year long.
Features
- Super Compact Size
- Top Port Design Fits in Tight Spaces
- Includes Easy-Mount Wall Bracket
- Aluminum Heat Recovery Core
- 4” (100mm) Duct Connections
- No Balancing Required
- Easy Access Service Door
- 3’ (914mm) Plug-in Power Cord
- Automatic Exhaust Defrost Allows Units to Always Stay in Ventilation Mode
- Only 26 lbs (12 kg)
- Electrostatic Filters (washable)
- Easy Core Guide Channels For Removing Core
- Multiple Speed Operation
PHRV 140
463320
Heat Recovery Ventilator without Recirculation
The PHRV140 is designed for higher static pressure applications. The unit brings a continuous supply of fresh air into a home while exhausting an equal amount of contaminated air. During winter, fresh incoming air is tempered by the heat that is transferred from the outgoing air so you save on energy costs. The PHRV140 is equipped with automatic defrost mechanisms so you can use your HRV all year long.
Features
- Airflow up to 142 CFM (67 L/s) @ 0,4″Ps (100 Pa)
- 6″ (152mm) oval duct connections with integrated airflow
measurement. - Compact design, only 23.75″ (603 mm) wide
- Fans with backward curved blade
- Electrostatic filters (washable)
- Aluminum heat recovery core
- Removable screw terminal for easy connection
- 44 lbs (19.9 Kg)
